Intelligent Pump Controller

Mirador

A field technician on-site 24/7.

The Mirador system consists of custom hardware and our intelligent controller to act as a field technician on-site 24/7, reporting and adjusting your chemical program in real time.

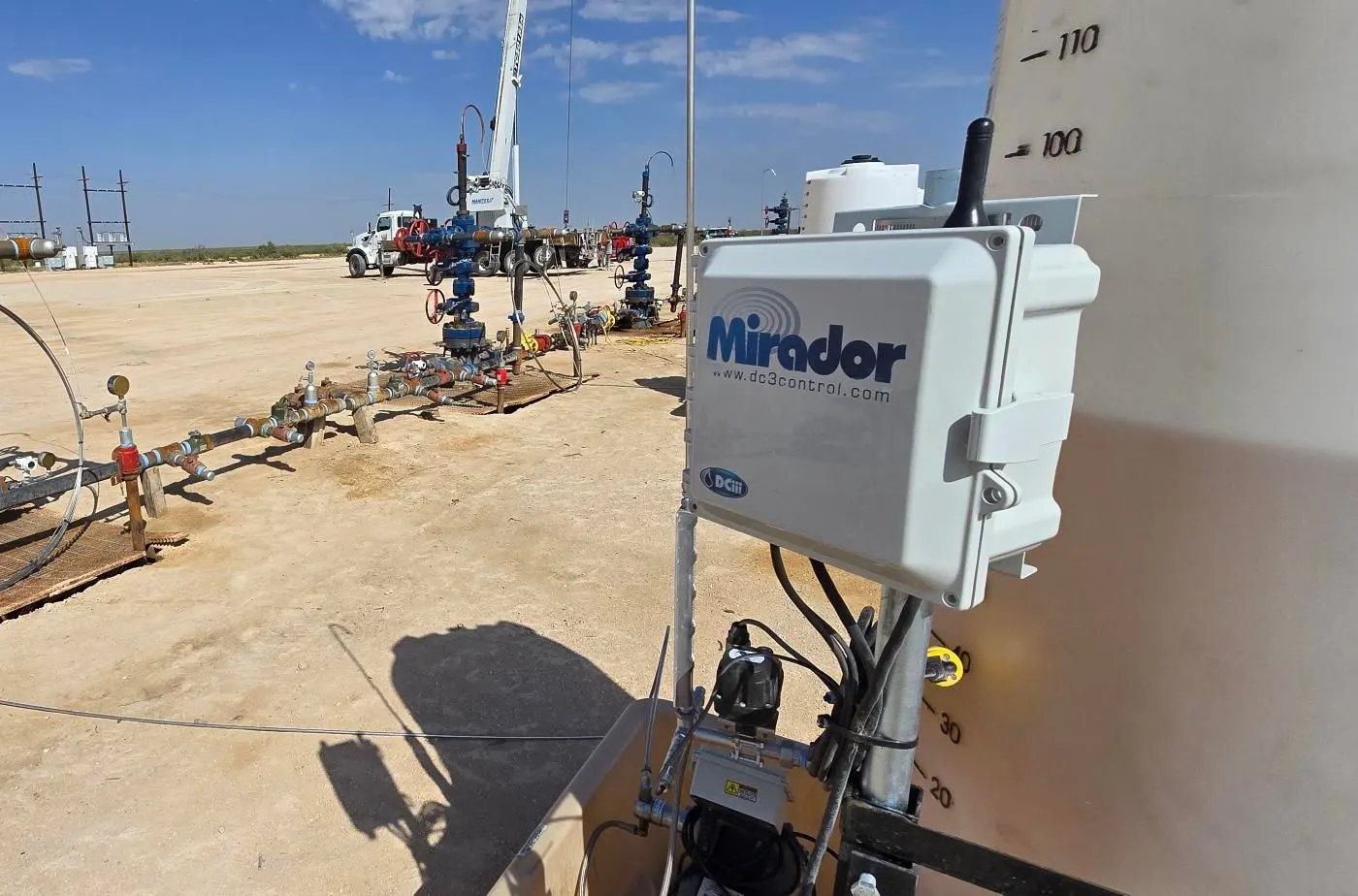

Mirador controller installed on a chemical tank with the wellhead behind it
1/10 qt
Verified dosing accuracy
24/7
Field tech on-site
30%
Daily rate swing handled
3 d–3 mo
Typical ROI

Key Capabilities

Fit-for-purpose, verified, field-ready

Adjust pump rate; rates change up to 30% daily on solar-powered systems
Adjust volume based on changes in pump rate or production rates
Verify actual chemical injected: hourly, daily, weekly
Verify injection delivery through direct pump monitoring
Real-time tank levels

How It Works

The Mirador seamlessly integrates into your existing chemical program, enhancing it with real-time, automated control. It monitors and adjusts the pump rate and chemical volume based on live production data, ensuring optimal chemical injection at all times, with its intelligent controller. Mirador responds to changing conditions instantly, maintaining the effectiveness of your chemical treatments. This continuous calibration and verification of injection rates eliminates the risk of under- or over-treatment, protecting your assets and optimizing production.

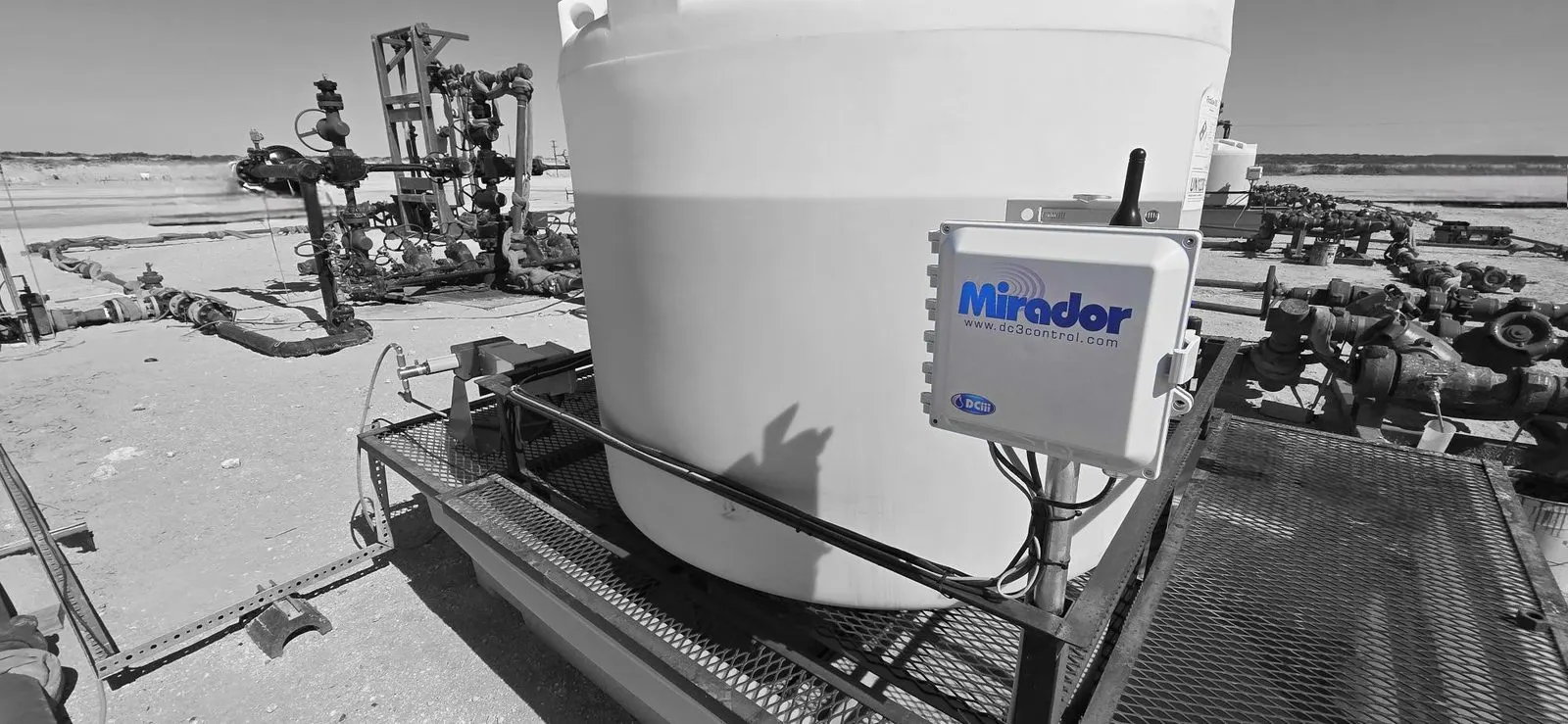

Mirador controller on a tank skid (highlighted)
Mirador in the field: real assets, real verification

Benefits

Automated Sightglass & Intelligent Controller

Equipped with an automated sightglass and a smart controller, Mirador is your vigilant field technician, always on duty.

Pump Variance and Drift Elimination

Eliminate and compensate for pump drift, even with solar-powered systems (up to 40% daily), ensuring optimal chemical delivery.

Rate Adjustment Based on Production Variables

Automatically adjusts the injection volume in response to changes in production, maintaining the perfect balance.

Verified Chemical Injection

Verification of the actual amount of chemical injected by the minute, hour, day, or week, ensuring precision and accountability in your chemical program.

Direct Pump Monitoring

A proactive approach to verify injection delivery, enhancing the reliability and effectiveness of your chemical treatment.

Mirador controller installed at a wellsite with a drilling rig in the background

Features

Versatile Pump and Tank Usage

Use any pump or tank, offering flexibility in diverse field conditions.

Temperature-Based Control

Specifically beneficial for methanol applications, ensuring optimal chemical usage.

Advanced Tank Level Monitoring

Keep a constant eye on tank levels, ensuring uninterrupted operations.

Flowrate-Based Injection Adjustment

Dynamically adjust injection rates based on flowrate changes.

Remote Control Capability

Manage and control rates remotely for enhanced convenience and efficiency.

Battery Health Monitoring

Monitor and assess battery health (volts/amps), preempting power-related issues.

SCADA Integration

Easily integrate into existing SCADA systems for streamlined operations.

Automatic Pump Calibration

Ensures precise chemical injection, maintaining consistent treatment efficacy.

DC3 Portal Option

Access to a specialized portal for enhanced data analysis and control.

Where It Fits

Continuous chemical injection
Solar-powered wellsites
SWD & CTB facilities
High-value integrity points

Technical Specifications

Technical specifications
Dimensions
19 x 13 x 9
Area Classification
C1D2
Compatibility
Designed to work seamlessly with a variety of chemicals, pumps and tanks
Power Requirements
10-32 VDC, 110/120 VAC
Connectivity
RS485, TCP-IP, Integrated SignalFire 900MHz radio. DC3 cloud portal optional
Material & Build
Constructed with 304SS, 316SS Teflon wetted parts; additional material available
Environmental Tolerance
Designed to operate efficiently in -40°C to 85°C

Guides & Downloads

PDFMirador Quick Set-Up GuideQuick start · 1 page · 187 KBPDFMirador Setpoint Change GuideCheat sheet · 1 page · 137 KBPDFAutoTrack ppm to Qt/bbl TableReference table · 1 page · 91 KBPDFMirador Firmware Update InstructionsFirmware · 1 page · 317 KB
All guides and downloads →

Frequently Asked Questions

How does the Mirador integrate with existing equipment?
Mirador is designed to be a simple retrofit compatible with 95% of chemical injection systems, including DC or AC pump motors. It uses an open-based Modbus RTU platform, ensuring seamless integration with existing SCADA or cloud-based systems.
Can Mirador be used in remote locations?
Yes, Mirador supports remote monitoring and adjustments. It connects to hard-to-reach and disparate assets using wireless radio, Ethernet, or other secure communication methods.
What kinds of chemicals and applications are supported by the Mirador?
Mirador supports various applications, including corrosion inhibitors, scale inhibitors, methanol, H2S scavengers, and more. It is suitable for a wide range of oilfield chemical injection needs.
What are the operating temperature and power requirements for the Mirador?
Mirador operates in a wide temperature range from -40°C to 85°C and requires a power supply of 10-30 VDC, making it suitable for extreme environmental conditions.
What communication protocols does the Mirador support?
Mirador uses the Modbus RTU protocol and supports multiple data interfaces, including RS485, wireless radio, and Ethernet, ensuring flexible and secure data communication with a wide range of existing infrastructure.
Is Mirador compatible with variable-speed and fixed-speed pumps?
Yes, Mirador supports both variable-speed and fixed-speed pump motors, providing versatility across different injection system configurations.
Show all 10 questions
What wireless options are available for remote connectivity?
Mirador offers a wireless option operating on the 902-928 MHz ISM band with a 300 mW FHSS radio. It includes an antenna for reliable remote communication.
How does Mirador handle diagnostic monitoring?
The system includes internal diagnostics for supply voltage, amperage, error conditions, and signal strength (optional wireless), ensuring consistent and reliable performance.
What dashboard capabilities does the Mirador offer?
The Mirador dashboard allows users to monitor and adjust injection rates, pump performance, tank levels, temperature limits, and calibrations remotely. It also provides automatic alerts and system health updates.
What modes of operation are available with the Mirador?
The Mirador supports several operating modes: Manual Timed (scheduled injection), Auto Tracking (real-time flow control based on production rates), Temperature/Freeze Protection (start/stop injection based on ambient temperature), and Auto Volume (set daily injection quantities, e.g., quarts/day).
